As a medium-strength weldable Al-Zn-Mg series aluminum alloy, 7005 aluminum alloy has high strength, good welding performance and process performance. 7005 aluminum alloy plates and profiles are used to manufacture welded structures that have both high strength and high fracture toughness, such as trusses, rods, containers of transportation vehicles, large heat exchangers and parts that cannot be solid fusion treated after welding. It is widely used in the field with high requirements for welding performance.

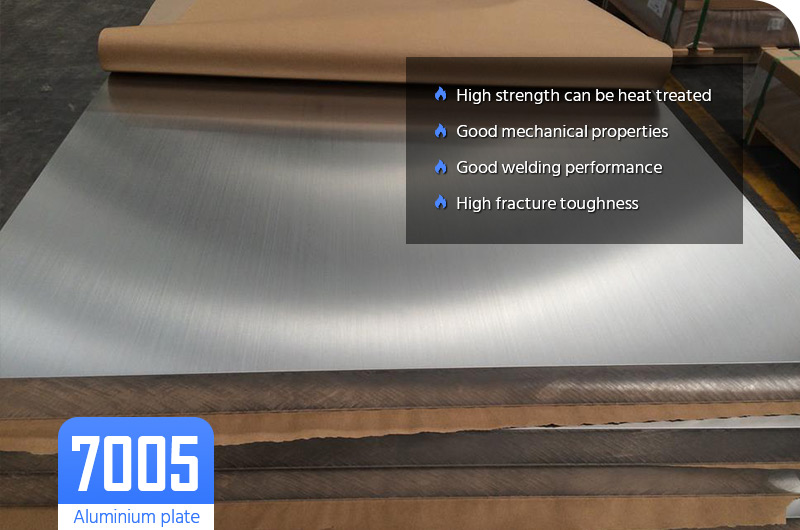

Advantages of 7005 aluminum alloy plate sheet
- Good anodizing performance, high strength and heat treatment.
- Good mechanical properties, easy processing and good wear resistance.
- It has good usability, no deformation and warping after processing after stress relief.
- All of them have been detected by ultrasonic waves, which can ensure no cracks, no blisters, and no impurities.
7005 alloy aluminum plate sheet manufacturer

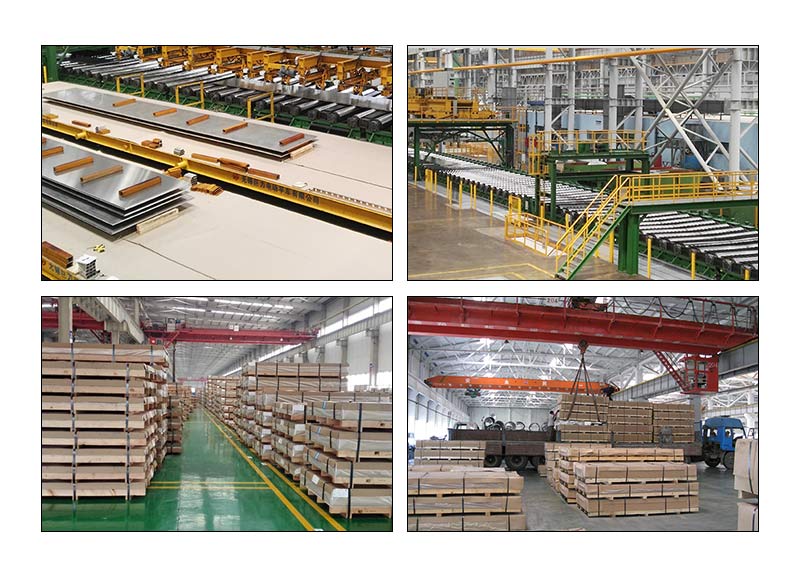

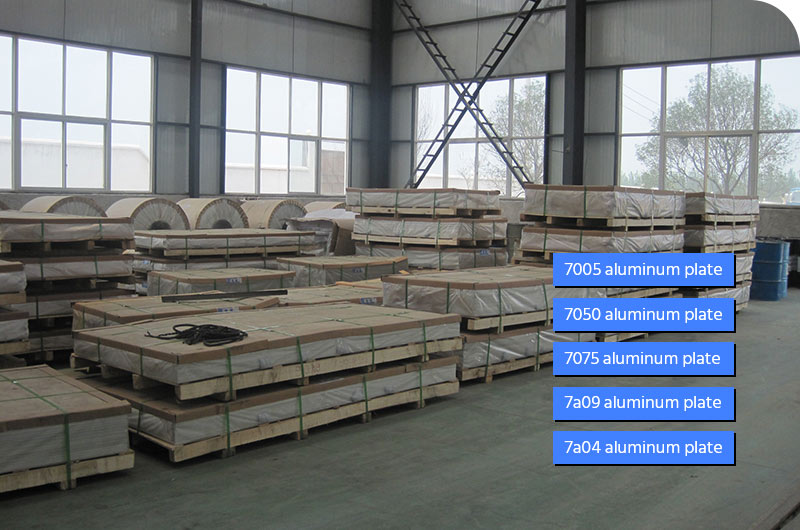

Aiboer Technology is a large-scale manufacturer of aluminum plate sheet. It produces and supplies 7-series alloy aluminum sheets including 7005 aluminum sheets, 7050 aluminum sheets, 7075 aluminum sheets, 7A09 aluminum sheets, and 7A04 aluminum sheets.
Aluminum sheet in Aiboer Technology are directly sold by manufacturers, no middlemen earn price difference. The aluminum plate is affordable, customized, and sold globally.
7005 aluminum plate price
Aluminum plate FOB price = (SMM aluminum ingot price + aluminum plate fabrication cost) / exchange rate
So when placing an order, you must consider not only the price of aluminum ingots, but also the fabrication fee, as well as the fluctuation of the exchange rate. Therefore, it is necessary to choose the right time and the right manufacturer with high quality in order to get a more competitive price.
Specs of 7005 alloy aluminum plate sheet
| Alloy | 7005 |
| Temper | F, O, T6, T651, T7451, H112 |
| Thickness（mm） | 1.0-600 |
| Width（mm） | <1500 |
| Length（mm） | <8000 |
| Typical Applications | large heat exchanger, tennis racket, softball bat, fixture, etc. |

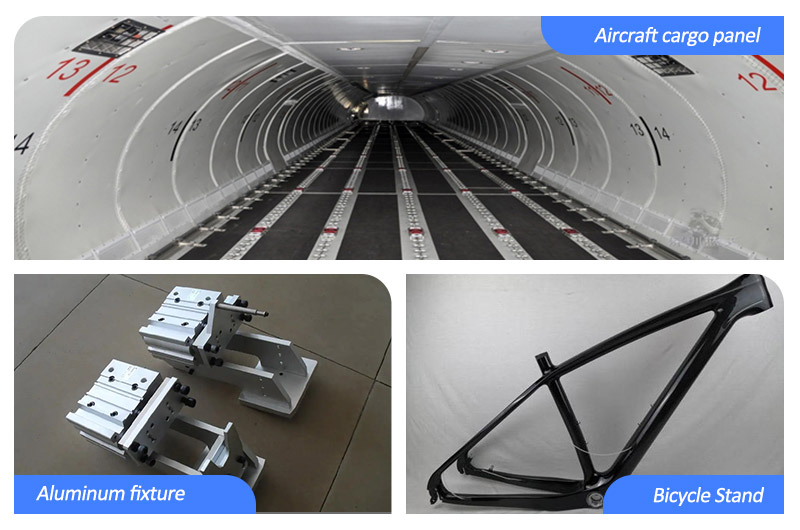

Hot selling products of 7005 aluminum alloy
7005 T6 aluminum plate sheet is often used to make aircraft seats, cargo compartment panels, etc.
Aluminum plate 7005 T6351 is often used to make fixtures and precision parts after being cut into small pieces, because there is no internal stress and this kind of plate has the relatively high strength.
7005 T53 seamless aluminum tube is commonly used to make wheelchairs, prosthetics and other medical devices.
7005 T6 aluminum extrusion profile is commonly used to make bicycle frames, which is high strength and durable.
Chemical composition of 7005 aluminum alloy
| Chemical Element | % Present |
| Si | 0.35 |
| Fe | 0.40 |
| Cu | 0.10 |
| Mn | 0.20 - 0.70 |
| Mg | 1.0 - 1.8 |
| Cr | 0.06 - 0.20 |
| Ni | - |
| Zn | 4.0 - 5.0 |
| Ti | 0.01 - 0.06 |
| Zr | 0.08 - 0.20 |
| Al | Remainder |
Thermal properties of 7005 aluminum alloy
| Alloy | 7005 | ||
| Liquidus temperature/°C | 643 | ||
| Solidus temperature/°C | 604 | ||
| Linear expansion coefficient | Temperature/°C | -50-20 20-100 20-200 20-300 | |
| Average value/｛um·(m·K)1｝ | 21.4 23.1 24.0 25.0 | ||
| Volume expansion coefficient/｛m3·(m3·K)1｝ | 67*10–6(20°C) | ||
| Specific heat capacity /｛J·(kg·K)1｝ | 875 (20°C) | ||
| Thermal conductivity/｛W·(m·K)1｝ | O | 166 | |
| T53, T63, T5361, T6351 | 148 | ||
| T6 | 137 | ||
Electrical properties of 7005 aluminum alloy
| Alloy | 7005 | |
| 20°Cvolume conductivity/%IACS | O | 43 |
| T53, T5351, T63, T6351 | 38 | |
| T6 | 35 | |
| Volume resistivity at 20°C/（nΩ·m) | O | 40.1 |
| T53, T5351, T63, T6351 | 45.4 | |
| T6 | 49.3 | |
| Temperature Coefficient of Volume Resistance at 20°C/（nΩ·m·K-1) | 0.1 | |
Modulus of aluminum alloy 7005
| Alloy | 7005 |
| Elastic Modulus E/（GN·mm-2) | 71 |
| Shear modulus G/（GN·mm-2) | 26.9 |
| Compression modulus G/（GN·mm-2) | 72.4 |
| Poisson's ratio u | 0.33 |
Aiboer Technology - professional 7005 aluminum plate supplier
Aiboer Technology is a professional aluminum sheet manufacturer with a professional R&D technical team, complete product specifications, guaranteed quality, affordable prices and customized support. Customers who choose Chinalco 7005 aluminum plate sheet will have no worries. For more detailed inquiries, please send us an email to discuss, looking forward to cooperating with you!
