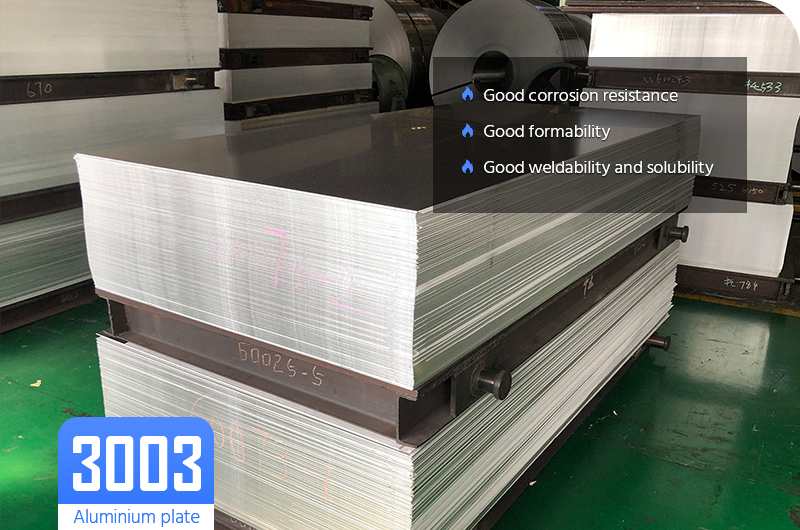

EN-AW 3003 aluminum sheet plate is a typical al-mn alloy and is the most widely used anti-rust aluminum plate. it has good corrosion resistance, good form ability, good weld ability, and good weld ability.
Aiboer can produce ASTM B209 3003 aluminum sheet, EN AW-3003 aluminum sheet (EN 573-3), A3003 aluminum sheet JIS H4000, GB/T 3190-1996 and other standards.
3003 aluminum sheet plate - chemical composition
| Chemical Element | % Present |
| Others (Total) | 0.0 - 0.15 |
| Cobalt (Co) | 0.05 - 0.20 |
| Hydrogen (H) | 0.0 - 0.70 |
| Magnesium (Mg) | 1.00 - 1.50 |
| Silicon + Iron (Si+Fe) | 0.0 - 0.60 |
| Zirconium (Zr) | 0.0 - 0.10 |
| Other (Each) | 0.0 - 0.05 |
| Aluminium (Al) | Balance |
3003 aluminum sheet - physical properties
| Physical Property | Value |
| Density | 2.73 g/cm3 |
| Melting Point | 655 °C |
| Thermal Expansion | 23.1 x10^-6 /K |
| Modulus of Elasticity | 69.5 GPa |
| Thermal Conductivity | 190 W/m.K |
| Electrical Resistivity | 0.034 x10^-6 Ω .m |
| Mechanical Property | Value |
| Tensile Strength | 95 - 135 MPa |
| Proof Stress | 35 Min MPa |
| Hardness Brinell | 28 HB |
Aiboer supply 3003 aluminum sheet size
| Alloy | 3003, EN-AW3003, A3003 |
| Temper | O, H12, H14, H16, H18, H19, H22, H24, H26, H28, H112, etc. |
| Thickness (mm) | 0.2mm - 500mm |
| Width (mm) | 20mm - 2650mm (customizable) |
| Length (mm) | 500mm - 16000mm (customizable) |
Aiboer - hot sale 3003 aluminum sheet plate application series

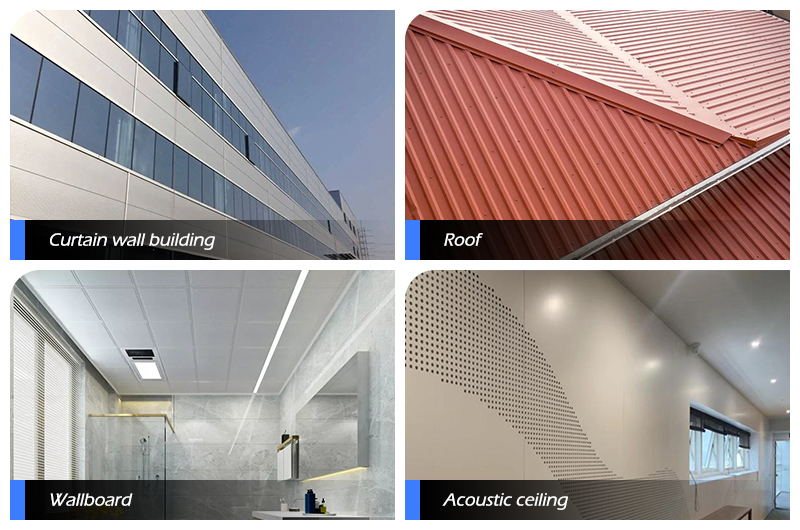

3003 H24/H14 aluminum sheet for curtain wall construction, used for 3003 color-coated aluminum sheet base material, with flat pattern and good color-coating effect. For the construction industry, roof and siding, acoustic ceilings, corrugated panels, etc.
Ultra-wide 3003 H22 H26 aluminum plate, size 0.7mm/0.8mm*2650mm, used for bus skin, container car wall, etc., truck box wall, silo, antenna pot material, wide curtain wall panel, wide roof panel, etc.
Hot-rolled 3003 aluminum plate, good deep drawing and tensile properties, used for power battery casing, automobile heat shield, fuel tank, water tank, automobile anti-skid plate, battery cover, automobile interior, etc.
3003 H22 aluminum traffic signs, corrosion resistance, long life.
3003 aluminum foil rolls are also used for honeycomb core 3003 aluminum foil, electronic foil, honeycomb material, lunch box material, container foil, etc.
Marine 3003 aluminum plate welding parts, ships, ships, vehicle materials, automobile and aircraft plate welding parts, etc.
3003 O/H14 aluminum sheet is often used in outer packaging, mechanical parts, and heating and cooling equipment, such as heat exchanger, air conditioning evaporator, motor vehicle radiator, refrigerator, air conditioning ventilation pipe and other humid environments. This product has good anti-rust ability.
3003 O temper aluminum sheet is used for power battery casings in lightweight vehicles, food storage devices, tanks and warehouses on transportation equipment, metal sheet pressure vessels and pipes, etc.It can also be used for kitchen utensils, making round slices, making the inside of the rice cooker, suitable for deep rush, good anode oxidation effect, cooking appliances, baking molds, etc.
3003 aluminum sheet is used in chemical and food industries, such as storage tanks, pipes, metal products, etc.It can also be used for cans, medical equipment, etc;
Weight calculation of 3003 aluminum plate
Aluminum plate weight calculation: length (mm) * width (m) * density 2.7g/cm3
3003 aluminum sheet plate price
3003 aluminum plate price: (LME ingot price + processing fee) * weight + packaging fee + transportation fee
Please contact Aiboer Technology to inquire about the price, and how much is the processing fee per ton for the relevant type of aluminum square bar. The processing fee for 3003 aluminum plates of different sizes varies greatly, and we will provide you with the best quotation.
3003 aluminum plate packaging and export transportation
- Export in wooden boxes or wooden pallets, fumigate wooden pallets, and provide fumigation certificates.
- During transportation, it is not allowed to mix aluminum plates with active chemical products and wet materials, and at the same time keep the carriages and ship warehouses dry, clean and pollution-free.
- It is best to use closed compartments or ship warehouses for the shipment of aluminum plates, and it can also be shipped by open cars. However, during transportation, it must be covered and tied tightly with rainproof and snow-proof sheets to ensure that the packaging boxes and aluminum plate products will not enter water, rain, snow.
- When transferring and flipping, the aluminum plate is best stored in the warehouse. If it is stored in a simple warehouse or in the open air, it must be covered and tied tightly with rainproof and snow-proof sheets. At the same time, the bottom packing box should be padded, not less than 100mm. The lifting, loading and unloading of the packaging box and the aluminum foil roll of the well-tac-toe frame should be handled with care to avoid damage to the packaging box and goods.
- Although relative fastening, moisture-proof packaging and measures have been taken in the packaging workshop, it is necessary to cover the tarpaulin during transportation to avoid water ingress into the aluminum plate packaging due to weather. At the same time, collision shall be avoided during loading and unloading, so that aluminum plates can be safely transported to users.
