2618 aluminum alloy rod is an Al-Cu-Mg-Ni-Fe alloy rod that can be strengthened by heat treatment. The aluminum alloy 2618 rod has high heat resistance, the service temperature is 200-250 ℃. The cold and hot processing performance is good, the welding performance is moderate, and it is suitable for manufacturing parts used at higher temperatures.

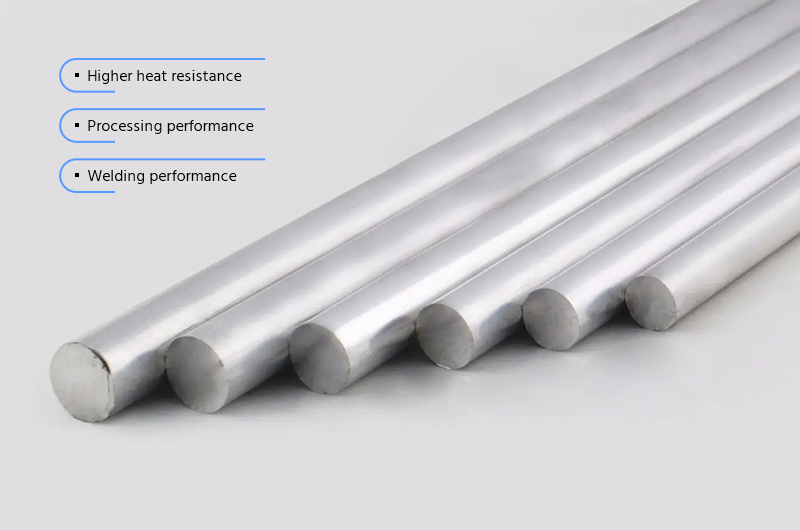

The typical features of Aiboer 2618 aluminum bar rod
Aiboer 2618 aluminum rods has high heat resistance；
Aiboer 2618 aluminum bar has good thermoplasticity and pressure workability；
After crystallization, Aiboer 2618 aluminum bar rod has a small critical deformation degree of coarse grains (2-4%)；
Aiboer 2618 aluminum rods have good process performance during casting and pressure processing (whether it is forging, extrusion or rolling).
The specifications of Aiboer 2618 aluminum bar rod
| Alloy | 2618 |
| Temper | T1, T6, T62, T6511, T8, T8511, F etc, |
| The diameter of aluminium round bar rod | 5.0-350 mm |
| The thickness of aluminum square bar rod or aluminum hexagonal bar rod | 5.0-200 mm |
| Length | 1000-6000mm or according to customer requirements |
| Standard | JIS, DIN, BS, ASTM, SAE etc |
| Similar Alloy with 2618 | 2618A |
| Test Certificate | As per EN 10204 3.1, Third Party Inspection, Buyer Inspection, Mill Test Certificate. |
The mechanical properties of 2618 aluminum bar rod
The mechanical properties of 2618 T1 T6 T62 T6511 aluminum rod
Mechanical properties of 2618 T1 T6 T62 T6511 aluminum rod（not less than）
| diameter | ≤150mm |
| thickness | ≤150mm |
| Tensile strength Rm/MPa | 375 MPa |
| Yield Strength Rp0.2/MPa | 315 MPa |
| Elongation % | 6% |
Mechanical properties of 2618 T1 T62 aluminum rod（not less than）
| diameter | 150-250mm |
| thickness | 150-250mm |
| Tensile strength Rm/MPa | 365 MPa |
| Yield Strength Rp0.2/MPa | 305 MPa |
| Elongation % | 5% |
The mechanical properties of 2618 T8 and T8511 aluminum bar
| diameter | ≤150mm |
| thickness | ≤150mm |
| Tensile strength Rm/MPa | 385 MPa |
| Yield Strength Rp0.2/MPa | 325 MPa |
| Elongation % | 5% |
The chemical composition of 2618 aluminum bar rod
| Si | 0.10-0.25 |
| Fe | 0.9-1.3 |
| Cu | 1.9-2.7 |
| Mn | - |
| Mg | 1.3-1.8 |
| Ni | 0.9-1.2 |
| Zn | 0.10 |
| Ti | 0.04-0.10 |
| Other | 0.20 |
| Al | Remainder |
The price composition of Aiboer 2618 aluminum bar
FOB price of 2618 aluminum bar rod /cold drawn aluminum rod bars 2618/2618 forged aluminum bar rod= SMM A00 aluminum ingot price on the day of inquiry + processing fee / exchange rate
Notes:
Aluminum ingot price is SMM A00 aluminum ingot price
FOB price can be US dollar price, Euro price, or Renminbi price, according to customer requirements.
Aluminum alloy 2618 F aluminum bar rod, Aluminium alloy 2618 T6 round bar rod are the 2 most ordered tempers by customers

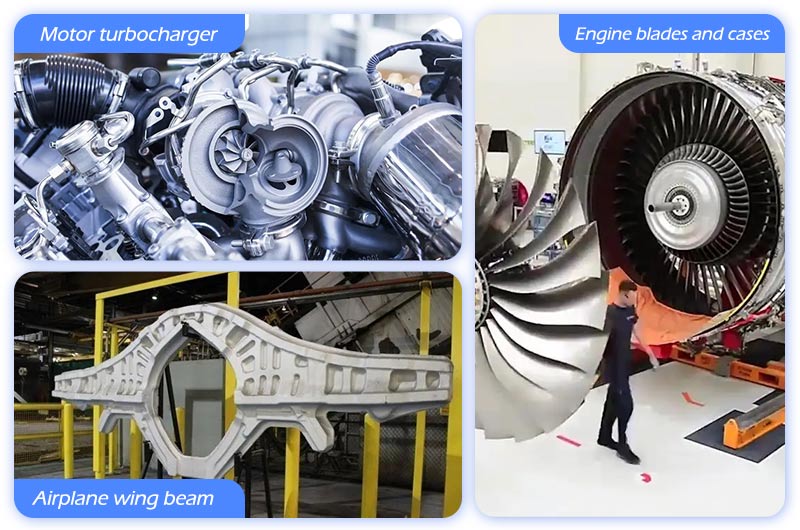

The application of 2618 aluminum bar rod
Aluminum alloy 2618 aluminum rod has high heat resistance and is suitable for the manufacture of parts used at higher temperatures. It is widely used in aero-engines and other parts that work under high-temperature conditions, such as turbochargers for automobiles.
The 2618 aluminum bar has good thermoplasticity and pressure processing properties, and can be used for a long time below 150°C and for a short time below 300°C, so it is widely used in the aerospace field, such as large aircraft casings and wing beams.
2618 aluminum alloy rods are widely used in the production of important load-bearing components with high strength above 150°C, such as the central floor of the cockpit, beams, joint ribs, outer wing partitions, and blades of the new "Spey" engine for supersonic fighter jets and chassis.
Aiboer 2618 forged aluminum bar rod
The specifications of Aiboer 2618 forged aluminum bar Rod
Aiboer 2618 forged aluminum square bar rod
| Maximum weight | ≤ 9T |
| Width | ≤ 2000mm |
| Height | ≤ 500mm |
| Length | ≤ 7000mm |
Aiboer 2618 forged aluminum round bar rod
| Maximum weight | ≤8T |
| Diameter | ≤ 800mm |
| Length | ≤ 7000mm |
| Executive standard | GBn223, YS/T479, ASTM B247, AMS series standards |
| Available status | O, F, H112, T3, T4, T5, T6, T62, T652, T73, T74, T7452, T852, etc. |

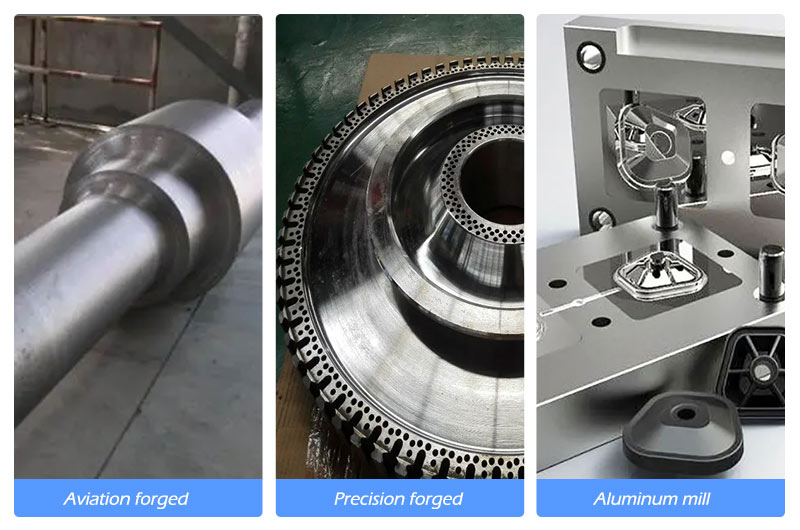

The application of Aiboer 2618 forged aluminum bar rod
Aiboer 2618 forged aluminum bar rod is a forging wrought aluminum alloy among wrought aluminum alloys.
It is generally used in the production of aviation forgings. It has small deformation resistance during isothermal forming, small elastic deformation of the mold, small deformation temperature fluctuation, precise size after forming, and small machining allowance or even no longer processing. It can produce precision forgings that meet the requirements of complex parts.
Why choose Aiboer Technology?
Aiboer provides excellent quality aerospace materials, as well as the best technical services in the market, and has a deep knowledge base on how to support customers in meeting future challenges.
We have a complete set of domestic advanced aerospace materials research and development, testing and analysis instruments, which guarantee the efficiency of new product research and development and accelerate the transformation of scientific and technological achievements. In addition, our R&D & innovation and verification capabilities can help enhance customers' competitiveness by saving time and cost in new product development and marketing.
We have passed the AS9100 certification required by the aviation industry, providing a strong guarantee for the quality of aerospace materials produced by our company.
The Aiboer brand stands for quality, delivery and a solid reputation. With leading technology and globally competitive products, we can continue to develop together with our customers in the future.
