Aiboer can produce UNS A97A04 QQA 200/2 7A04 aerospace aluminum rod bar, has AS9100 Collin Aviation Certification.
Specifications of Aiboer Technology 7A04 aerospace rod bar
Alloy: 7A04
Material tempers: T3, T6, T8, T651, T6511 etc.
Standard: UNS A97A04 QQA 200/2
Diameter: From 0.25" (6.35mm) to 10" (254mm).
Length: usually about 12 feet (3.66 meters), different lengths can also be customized according to customer needs.
Other dimensions may vary depending on the needs of the application.
Chemical composition of Aiboer 7A04A aerospace aluminum alloy
| 7A04 alloy chemical | |
| Chemical element | % Present |
| Si | 0.5 |
| Fe | 0.5 |
| Cu | 1.4-2.0 |
| Mn | 0.20-0.60 |
| Mg | 1.8-2.8 |
| Ti | 0.1 |
| Cr | 0.10-0.25 |
| Zn | 5.0-7.0 |
| Other (Each) | 0.0-0.05 |
| Aluminium (Al) | Balance |
Mechanical properties of Aiboer 7A04 aerospace high quality rod bar
| Properties | |
| Mechanical property | Value |
| Tensile strength | 530 MPa |
| Yield strength | 400 Min MPa |
| Electrical conductivity | 5% IACS |

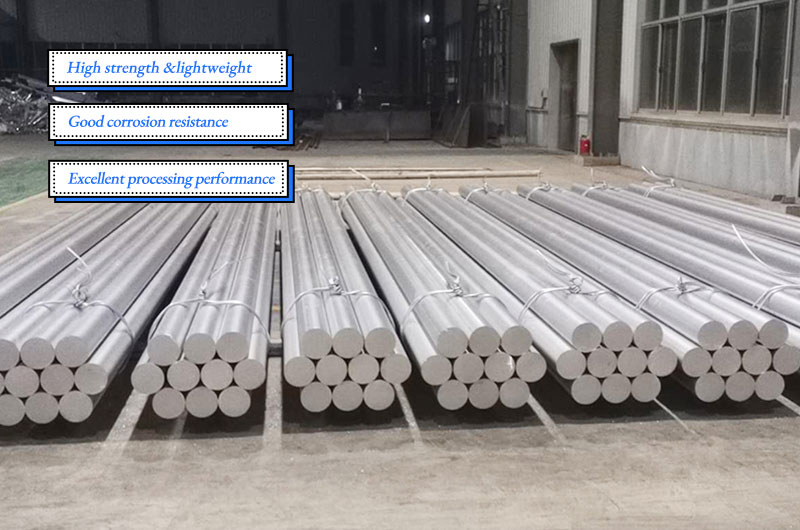

Product features of Aiboer 7A04 aviation aluminum alloy rod bar
High strength: the tensile strength of 7A04 aviation aluminum rod can reach more than 500MPa, which is one of the highest strength varieties among aluminum alloys, and can meet the high requirements for material strength in the aviation field.
Lightweight: 7A04 aviation aluminum rod has a lower density and is lighter than metal materials such as steel and titanium alloys. It can effectively reduce the weight of the aircraft and improve the load capacity and economy.
Good corrosion resistance: the surface of 7A04 aviation aluminum rod has been specially treated, which has good corrosion resistance and can be used for a long time in harsh environments such as atmosphere and sea water.
Excellent processing performance: 7A04 aviation aluminum rod has excellent processing performance, and can be processed by various processing techniques to produce various complex shapes of parts.
Application of Aiboer 7A04A industrial aerospace grade aluminium rod bar
Due to the high strength, excellent corrosion resistance and good processing performance of 7A04 aluminum rods, 7A04 aviation aluminum rods are widely used in the aviation field, and are often used to make wings, fuselages, engine parts, etc.
Production process of Aiboer Technology 7A04 (UNS A97A04) rod bar
Material preparation: choose the appropriate aluminum alloy material and cut it to an appropriate length according to the requirements.
Heat treatment: heat the aluminum rod material to a specific temperature and then cool it in air to improve its mechanical properties and corrosion resistance.
Stretching: the heat-treated aluminum rod material is stretched to the required diameter and length by a stretching machine.
Cutting: cut the stretched aluminum rod material to the required length and shape.
Surface treatment: chemical treatment or mechanical polishing of aluminum rod material to improve its surface finish and corrosion resistance.
Inspection: inspect the appearance, size and mechanical properties of the aluminum rod material to ensure that it meets the relevant standards and requirements.
Packaging and storage: the aluminum rod material is packaged and stored for subsequent processing and use.
Why choose Aiboer Technology as alloy 7A04 aerospace rod bar aircraft materials manufacturer?
Aiboer provides excellent quality aerospace materials, as well as the best technical services in the market, and has a deep knowledge base on how to support customers in meeting future challenges.
We have a complete set of domestic advanced aerospace materials research and development, testing and analysis instruments, which guarantee the efficiency of new product research and development and accelerate the transformation of scientific and technological achievements. In addition, our R&D & innovation and verification capabilities can help enhance customers' competitiveness by saving time and cost in new product development and marketing.
We have passed the AS9100 certification required by the aviation industry and the Colin Aviation certification, and produce according to the UNS A97A04 QQA 200/2 standard required by customers, providing a strong guarantee for the quality of aerospace materials produced by our company.
The Aiboer brand stands for quality, delivery and a solid reputation. With leading technology and globally competitive products, we can continue to develop together with our customers in the future.
