Why Aiboer 7050 aluminum forgings?
Quality could full meet world wide aviation standard
AMS 4107 7050-T74 die forgings,
AMS 4108 7050-T7452 hand forgings,
AMS 4201 7050-T7452 die forgings
We meet international aviation certification
AS9100
OHSAS 18001
ISO14001
ISO 9001
NADCAP HT
NADCAP NDT
IATP16949

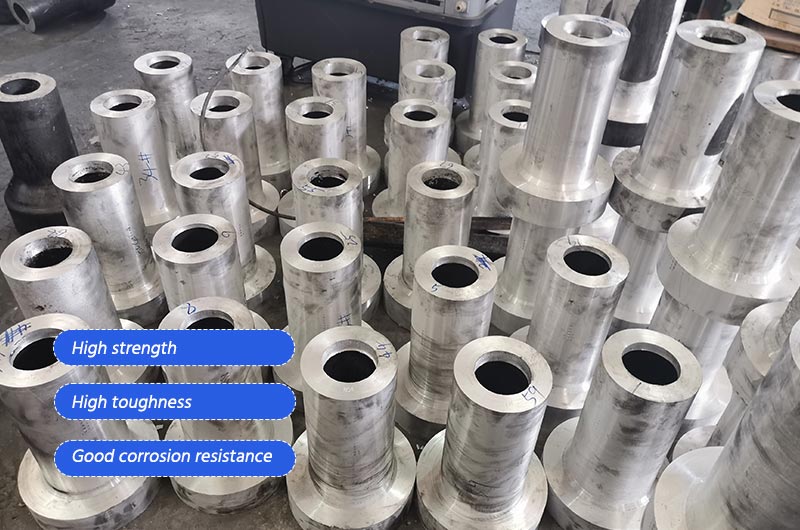

Aiboer can ensure that our 7050 aluminum forgings have sufficient strength, toughness, corrosion resistance and reliability in aerospace applications.
Specification of 7050 T74/T7452 aluminum forgings
| FORGING | TYPE | MAX. WEIGHT | MAX. DIMENSION |
| Open Die Forging | Cube | ≤9T |
Length≤7000mm， Width≤2000mm， Height≤500mm |
| Disk | ≤5T | Diameter≤2500mm | |
| Ring | ≤5T |
Outer diameter of quenching parts≤2500mm， Outer diameter of non-quenching parts≤4000mm， Height≤500mm |
|
| Cylinder | ≤5T |
Outer diameter 200- 800mm，Length≤2000mm； Outer diameter 801- 2000mm，Length≤1500mm； |
|
| Axle | ≤8T |
Length≤7000mm， Diameter≤800mm |
|
| Backward Extrusion | Forged Pipe |
Outer diameter≤830mm， Inner diameter≤650mm， Length≤1800mm |
|
| Closed Die Forging | Common Closed Die Forgings | - | PVA≤3.0 ㎡（Diameter≤1950mm） |
| Complex Closed Die Forgings | - | PVA≤1.5 ㎡（Diameter≤1400mm） |
Chemical composition of 7050 aluminum forgings
| Element | Mass Fraction % |
| Aluminum | 86.4-90.0 |
| Zinc | 6.0-7.0 |
| Magnesium | 2.1-2.9 |
| Copper | 1.4-2.0 |
| Manganese | ≤0.10 |
| Chromium | ≤0.04 |
| Titanium | ≤0.06 |
| Germanium | ≤0.06 |
| Strontium | ≤0.03 |
| Any other single impurity | ≤0.05 |
| Total impurities | ≤0.15 |
Physical property for 7050 aluminium forgings
| Physical Property | value |
| Melting Point, °F(°C) | 1060-1180 (571-638) |
| Thermal Expansion, in/in/°F(µm/m/°C) | 13.1*10-6 (23.6*10-6) |
| Electrical Resistivity, µohm-cm | 3.5 |
| Thermal Conductivity, Btu/(ft * h * °F) (W/m * K) | 79.4 (137) |
| Specific Heat, Btu/(lb * °F) (J/kg * K) | 0.24 (1005) |
| Density, lb/in^3 (g/cm3) | 0.101 (2.81) |
| Elastic Modulus, ksi (GPa) | 10.8*10-6 (74.5) |
| Poisson's Ratio | 0.33 |
Melting property requirements for 7050 forgings
| Melting Property | value |
| Solidus Temperature, °F(°C) | 1010 (544) |
| Liquidus Temperature, °F(°C) | 1090 (588) |
| Brazing Temperature Range, °F (°C) | 1125-1175 (607-635) |
Guarantee of Aiboer promise
- Surface Quality: no scratches, pits, cracks, or other surface defects that affect the serviceability of the product.
- Workability: good formability and machinability.
- Fracture Toughness: minimum KIC of 28 ksi√in (31 MPa√m).
Application of 7050 aluminum forgings
Application of 7050 T74 aluminum forgings
This type of aerospace aluminum forgings has high strength, excellent corrosion resistance and fatigue performance, and is commonly used to manufacture aircraft fuselages, wing-fuselage structures, wing frames, as well as spacecraft and missiles.
Application of 7050 T7452 aluminum forgings
Compared to T74 type, this type of aerospace aluminum forgings has better plasticity and toughness, and is usually used to manufacture structural components that require high strength, corrosion resistance and fatigue performance, such as aircraft wings, flaps, control surfaces, etc.
