AMS 6061 O T4 T6 aircraft drawn seamless aluminum tube is a kind of aluminum alloy pipe with high strength, light weight, corrosion resistance and good fatigue resistance. It is widely used in various structures and parts in the aerospace field.
Why choose Aiboer 6061 aircraft drawn seamless aluminum tube?
1. Quality could full meet AMS aviation standard.
AMS 4079 6061-0 Drawn Seamless Aluminum Tube Close Tolerence
AMS 4080 6061-0 Drawn Seamless Aluminum Tube
AMS 4081 6081-T4 Drawn Seamless Hydraulic Aluminum Tube
AMS 4082 6061-T6 Drawn Seamless Aluminum Tube
AMS 4083 6061-T6 Drawn Seamless Hydraulic Aluminum Tube
QQ-A-225/8 6061-T6 / T651 Cold finished bar, tube, section
WW-T-700/6 6061-T6 Seamless, drawn tube
MIL-T-7081 6061-T6 Hydraulic aluminum tube
EN 2392 6061-T6 Aluminum Tube
2. Production and management comply with international aviation quality system certification.
Accreditations:
AS9100
OHSAS 18001
ISO14001
ISO 9001
NADCAP HT
NADCAP NDT
IATP16949
Specs of 6061 aircraft drawn seamless aluminum tube
| Alloy | 6061 |
| Temper | O, T4, T6 |
| Out diameter | 3.0mm-600mm |
| Wall thickness | 0.5-100mm |
| Length | 1000mm, 4000mm, 6000mm |
| Standard | AMS 4079, AMS 4080, AMS 4081, AMS 4082, AMS 4083 QQ-A-225/8, WW-T-700/6, MIL-T-7081, EN 2392 |
| 6061 aircraft aluminum tube |
Our 6061 T6 round aluminum tubing stock, include both 6061aluminum seamless tube and normal 6061 extruded aluminum tubing. OD: 6-600mm Walls thickness: 1mm-10mm Shapes: round aluminum tube only Tempers: T6 Length: 1m, 4m, 6m or cut into length |
Chemical composition of 6061 aluminum alloy
| 6061 Alloy % | |
| Si | 0.40-0.80 |
| Fe | 0.70 |
| Cu | 0.150.40 |
| Mn | 0.15 |
| Mg | 0.80-1.20 |
| Cr | 0.04-0.35 |
| Ni | - |
| Zn | 0.25 |
| Ti | 0.15 |
| Al | Remainder |
Mechanical property of 6061 aircraft drawn seamless aluminum tube
| Alloy | Temper | Wall thickness mm | Tensile mechanical properties at room temperature | ||||
| Tension strength MPa | Yield strength MPa | Elongation ％ | |||||
| Full cross-section specimen | other samples | ||||||
| A 50mm | A 50mm | A | |||||
| Not less than | |||||||
| 6061 | O | ≤20.00 | ≤152 | ≤97 | 15.00 | 15.00 | — |
| T4 | 0.64-1.24 | ≥207 | ≥10 | 16.00 | 14.00 | — | |
| ＞1.24-6.58 | ≥207 | ≥10 | 18.00 | 16.00 | — | ||
| ＞6.58-12.70 | ≥207 | ≥10 | 20.00 | 18.00 | — | ||
| T42 | 0.64-1.24 | ≥207 | ≥97 | 16.00 | 14.00 | — | |
| ＞1.24-6.58 | ≥207 | ≥97 | 18.00 | 16.00 | — | ||
| ＞6.58-12.70 | ≥207 | ≥97 | 20.00 | 18.00 | — | ||
| T6, T62 | 0.64-1.24 | ≥290 | ≥241 | 10.00 | 8.00 | — | |
| ＞1.24-6.58 | ≥290 | ≥241 | 12.00 | 10.00 | — | ||
| ＞6.58-12.70 | ≥290 | ≥241 | 14.00 | 12.00 | — | ||
| T8 | ＞0.91-8.89 | ≥310 | ≥276 | 8.00 | — | — | |

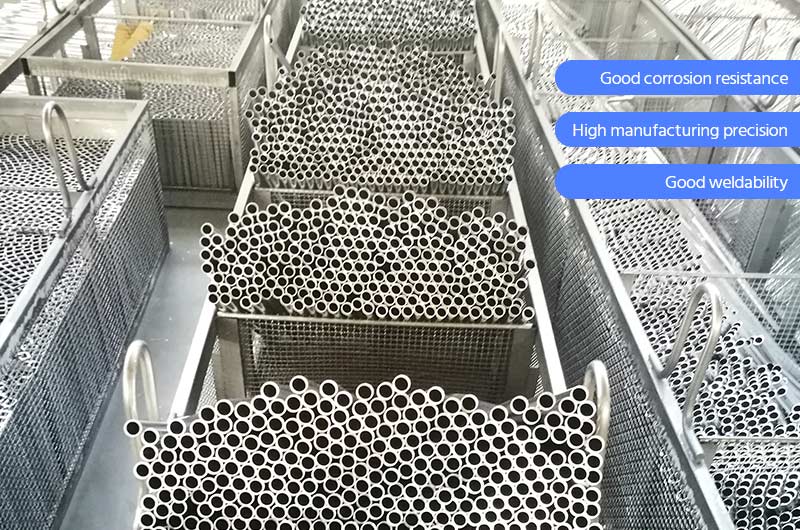

Features of 6061 aircraft drawn seamless aluminum tube
High strength: 6061 aluminum alloy has high strength and can withstand high pressure and load.
Good corrosion resistance: the alloy has good corrosion resistance and can be used under harsh environmental conditions.
High manufacturing precision: 6061 aluminum tubing adopts seamless and drawing manufacturing process, with high precision of inner and outer diameters, which can ensure the tightness and flow performance of the pipeline system.
Smooth surface: adopting seamless and drawing manufacturing process, the surface is smooth, which can reduce the friction of fluid in the pipeline and reduce energy loss.
Good weldability: 6061 aluminum alloy is easy to weld and can meet the joining requirements of pipes in hydraulic systems and fuel systems.

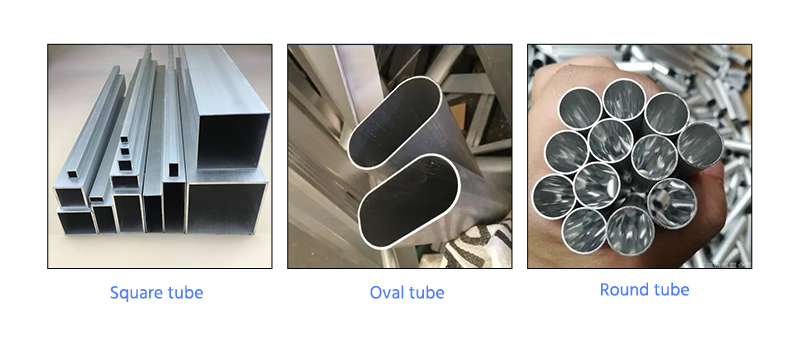

Types of 6061 aluminum tubing and theirs uses
6061 aircraft aluminum square tubing is widely used in aircraft structural parts, missile parts, spacecraft parts, etc. in the aerospace industry due to its high strength, light weight, and corrosion resistance.
6061 aluminum oval tubing 6061 oval tubing is a multifunctional material with high strength, good corrosion resistance and excellent machinability. 6061 oval aluminum tubing is used in a variety of aerospace applications including aircraft frames and structural components due to its light weight and high strength.
Aluminum round tubes refer to tubes with a circular cross-section, and different diameters and thicknesses can be selected according to different uses and needs. 6061 round aluminum tubing is widely used in the aerospace industry to manufacture aircraft frames, missile components, spacecraft components, etc. due to its high strength, light weight, and corrosion resistance.
6061 T6 seamless drawn aluminum tube, as an important component in aerospace, shipbuilding, automobile and other fields, can meet the requirements of high strength, corrosion resistance, manufacturing precision and smooth surface of various pipes and connectors, and has a wide range of application values.
6061-T4 drawn seamless hydraulic aluminum tube is generally used in hydraulic systems, fuel systems and other high-pressure piping systems in aerospace, military, transportation and industrial fields as a piping component for transferring fluid.
6061-0 drawn seamless aluminum tube is a soft alloy aluminum tube with good machinability and formability, and can be used to manufacture parts and structures of more complex shapes and sizes. It has strict control requirements and can meet the requirements of various precision machinery, instruments, aerospace and other fields.
What precautions should be taken when purchasing 6061 aluminum tubes?
When purchasing 6061 aluminum tubes, you should pay attention to the following points.
Determine the required size and thickness: select the appropriate outer diameter, wall thickness and length according to the required use and requirements.
Choose the right material: different application scenarios require aluminum tubes of different materials. Although 6061 is the most commonly used aluminum tube alloy, not all scenarios are suitable for 6061 aluminum tubes.

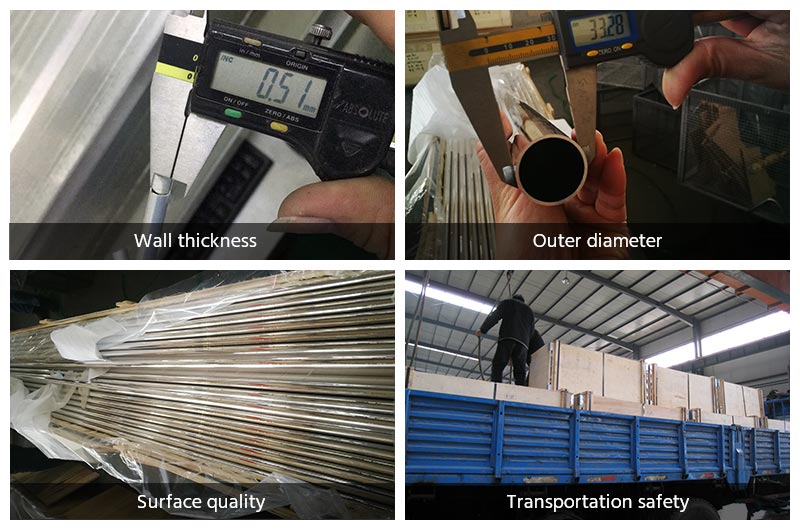

Confirm the quality and performance: before purchasing, you should confirm that the quality and performance of the 6061 aluminum tube meet the relevant standards and requirements, such as strength, toughness, corrosion resistance, etc.
Consider the production process: different production processes will affect the surface smoothness, inner and outer diameter precision and weld quality of the aluminum tube, etc., and the influence of the process on the performance of the aluminum tube should be considered.
Choose a reliable manufacturer: when purchasing, you should choose a manufacturer with qualifications and reputation. Aiboer Technology can ensure that the quality and performance of the purchased aluminum tube meet the standard requirements, and provide good after-sales service.
Confirm the price and delivery date: before purchasing, you should ask about the price and delivery date of aluminum tubes. Aiboer Technology has thousands of tons of 6061 aluminum tubes in stock of various specifications, including capillary aluminum tubes and large diameter aluminum tubes, which can guarantee customers when they need obtain the required aluminum tube within a short period of time.
To sum up, the purchase of 6061 aluminum tubes needs to consider many aspects, and conduct comprehensive evaluation and selection from multiple perspectives such as size, material, quality, production process, and manufacturer reputation.
