Aiboer can produce AMS 4066 4088 2219-T351 T851 Aluminum Tube, ASTM B241 2219 O, T31, T3511, T62, T81, T8511 seamless extruded tube, customized size and specification, good quality, is Collins Aerospace, one of the aviation aluminum suppliers such as Boeing and Airbus.
2219 aluminum alloy tube specifications
2219 T851 T351 AMS 4066 4068 aluminum alloy seamless pipe specifications
According to the AMS 4066 standard, the outer diameter, wall thickness and length of 2219-T351 extruded aluminum alloy seamless pipe should meet the following requirements:
| Product description | AMS 4066 2219 Extruded Aluminum Alloy Seamless Pipe |
| Temper | T851, T351 |
| OD Range | 0.250" (6.35mm) to 5.000" (127.00mm) |
| Wall thickness | 0.028" (0.71mm) to 0.500" (12.70mm) |
| Standard length | 24 feet (7.32 meters) |
| It should be noted that this is only the scope specified by the standard, and specific production requirements and dimensions may be customized according to customer needs. | |
ASTMB 2219 O, T31, T3511, T62, T81, T8511 extruded aluminium seamless tube specifications
| Product description | ASTM B241 2219 Extruded Aluminum Alloy Seamless Pipe |
| Temper | O, T31, T3510, T3511, T62, T81, T8510, T8511 |
| Outside diameter range | Up to 25 inches (635mm) |
| Wall thickness range: | 0.5" (12.7mm) to 3.0" (76.2mm) |
| Standard length: | 24 feet (7.32 meters) |
| It should be noted that this is only the scope specified by the standard, and specific production requirements and dimensions may be customized according to customer needs. | |
Aiboer also produces 2219 Welded Pipe, 2219 Semi Rigid Pipe, 2219 thin Wall Pipe, etc. If you need to buy aviation standard hard 2219 aluminum alloy pipe, please contact Aiboer Technology, which is a high-quality manufacturer of 2219 alloy pipe.
Chemical composition of 2219 aluminum alloy tube
| Chemical Composition Limits | ||||||||||||
| Weight% | Si | Fe | Cu | Mn | Mg | Zn | Ti | V | Zn | Others | Al | |
| Alloy 2219 | ≤0.2 | ≤0.3 | 5.80-6.80 | 0.20-0.40 | ≤0.02 | ≤0.1 | 0.02-0.10 | 0.05-0.15 | 0.10-0.25 | each | total | Bal |
| 0.05 | 0.15 | |||||||||||
Physical properties of 2219 aluminum tube
| 2219 aluminum tube physical properties | |
| Density | 2.77 g/cm3 |
| Melting point | 535°C |
| Coefficient of thermal expansion | 23.2 × 10^-6/K |
| Thermal conductivity | 117-166 W/(m·K) |
| Conductivity | 35-38 %IACS |
| Elastic modulus | 72.4 GPa |
Mechanical properties of 2219 aluminum alloy tube
| Production standard | ASTM B241, AMS 4066 4068 |
| Tensile strength | min 324 MPa |
| Yield strength | min 124 MPa |
| Elongation | min 12% |

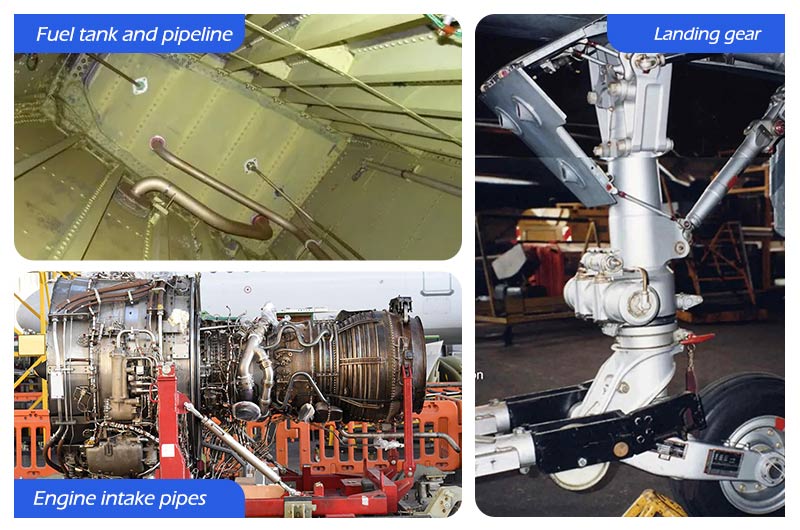

Application of 2219 aluminum alloy aluminum tube in aviation field
2219 aluminum alloy tubes have excellent strength and corrosion resistance, and are widely used in aerospace, such as aircraft structural parts, engine parts, aerodynamic models, high-pressure oil pipes, fuel tanks and oil pipes, etc.
Landing gear and parachute system components: 2219-T851, 2219-T8511 aluminum alloy aluminum tube.
Engine components, such as intake pipes and turbine blades: 2219-T851, 2219-T8511, 2219-T6 aluminum alloy aluminum tubes.
Fuel system, such as fuel tank and pipeline: 2219-T8511 aluminum alloy tube.
Assembly and connection of aircraft shell and fuselage structure: 2219-T6 aluminum alloy tube.
Aircraft components with high temperature and high strength requirements: 2219-T851, 2219-T8511, 2219-T6 aluminum alloy tubes.
2219 aerospace aluminum tube price
2219 aluminum tube price: (LME ingot price + processing fee)×weight + packaging fee + transportation fee
The price of 2219 aluminum alloy tubes will be affected by many factors, such as market supply and demand, raw material prices, processing costs, specifications, and other factors. Different manufacturers and suppliers may have different pricing strategies and price levels. In addition, it is also affected by factors such as currency exchange rate and international economic situation.
Therefore, please contact Aiboer Technology for inquiry, we will provide you with the best quotation and service.

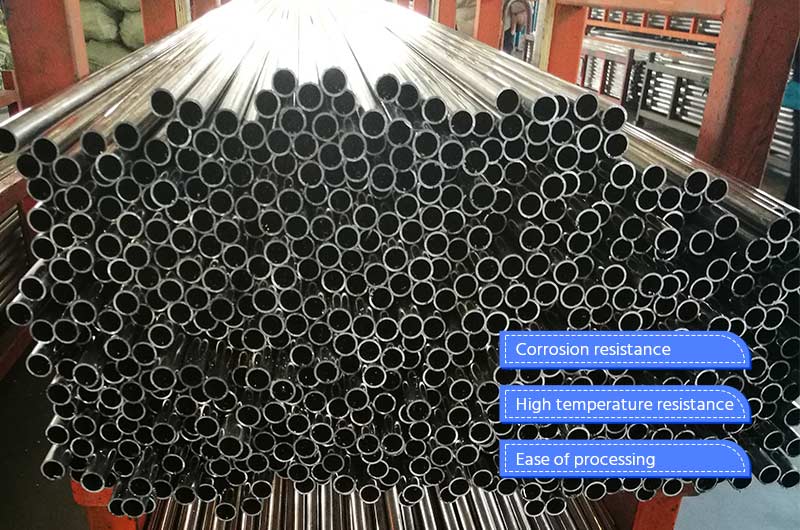

The main advantages of using 2219 aluminum alloy tubes in aircraft applications
High strength: The 2219 aluminum alloy tube has high strength and durability, and can withstand the challenges of aircraft flying at high speeds and emergencies.
Corrosion resistance: 2219 aluminum alloy tube has good corrosion resistance and can be used in various climates and working conditions.
Lightweight: compared with other metal pipes, 2219 aluminum alloy pipes are lighter in weight, which helps to reduce the weight of the entire aircraft and improve fuel efficiency and performance.
High temperature resistance: 2219 aluminum alloy tubes can still maintain strength and durability at high temperatures, so they are widely used in high temperature components such as aircraft engines.
Ease of processing: 2219 aluminum alloy tubes are easy to process and form, which can meet complex design requirements and improve production efficiency.
